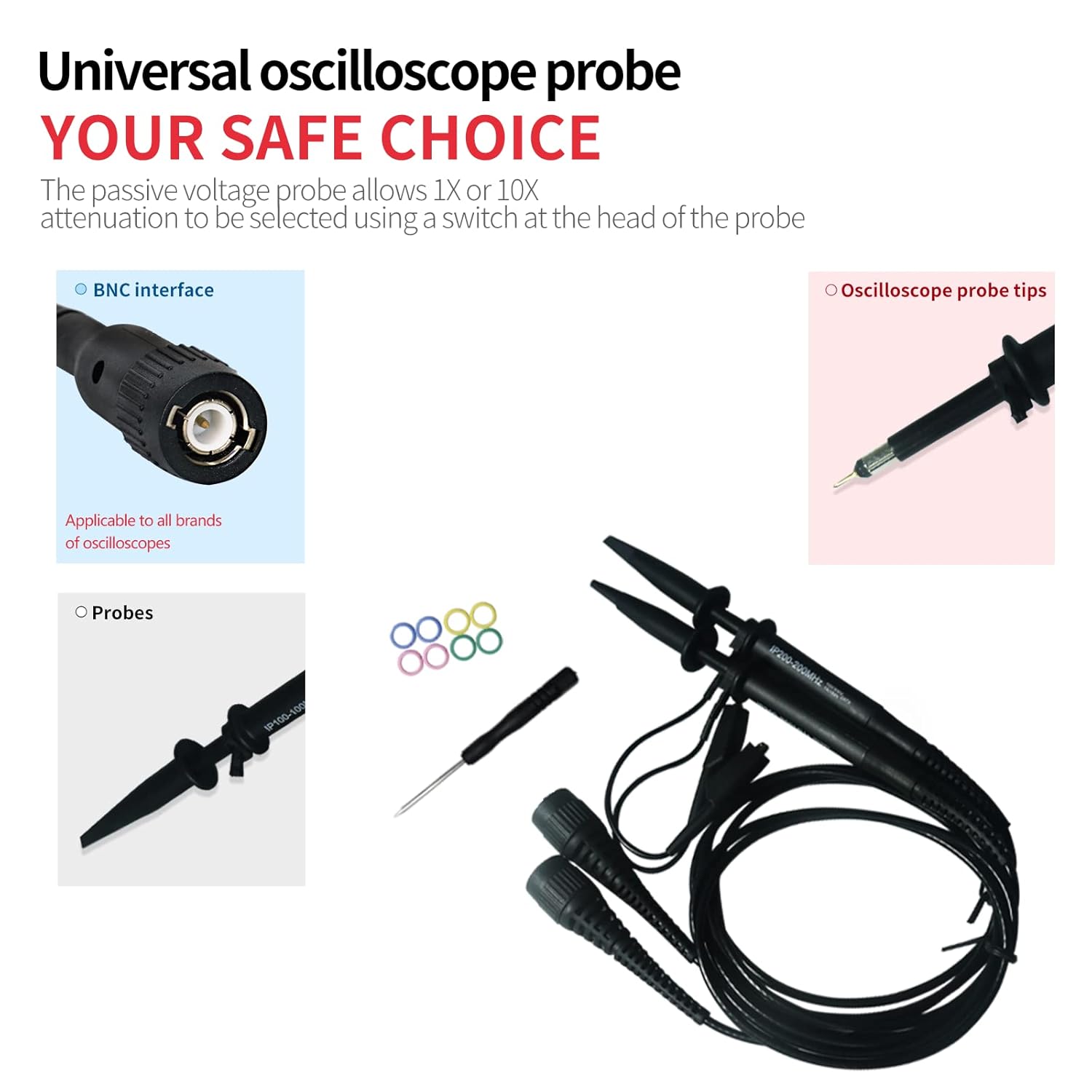

100 MHz Oscilloscope Probe 10x Attenuation Black MATRIX IP2210
Product details
| Management number | 218089313 | Release Date | 2026/05/03 | List Price | US$10.00 | Model Number | 218089313 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Model: IP2210 Attenuation ratio: X1/X10 Input resistance: 1MΩ for X1 &10MΩ for X10 Input capacitance: X1 95pF~X10 12pF Compensation range: 10pF~30pF System bandwidth: DC-100Mhz Output voltage: X1 150V DC+Peak AC X10 300Vms Operating temperature range: 0 °C ~ 50 °C Process: injection molding integration Color:black Cable length: 122cm /48inch Humidity: ≤ 80% (relative humidity) Weight: 82g
- 【Universal Oscilloscope Probe】10:1 and 1:1 Switchable Bandwidth 100MHz,Usable with Scopes having Bandwidth up to 100 MHz
- 【Oscilloscope Clip Probe】Oscilloscope probe attenuation can be adjusted with a 1X or 10X sliding switch. The grounding crocodile clip reliably grounds the probe stage for safe operation and correct signal reading.
- 【Home & Industry Application】Suitable for all digital oscilloscopes and analog oscilloscopes voltage detectors to test circuit
- 【WIRE CORE】Composed of 105pcs 0.001mm copper wires and nylon yarn give the test leads kit excellent Tensile strength and bending resistance, low resistance, electrical conductivity, it is good helper for electricians and electronic product repairers
- 【QUALITY】We use high-quality materials ensures that the test leads are durable, flexible, and resistant to freezing and heat. It can withstand low temperatures of -68℉, won't become stiff during the winter.
| Item Weight | 1.1 pounds |
|---|---|
| Manufacturer | MATRIX TECHNOLOGY INC. |
| Package Dimensions | 6.1 x 6.1 x 1.4 inches |
