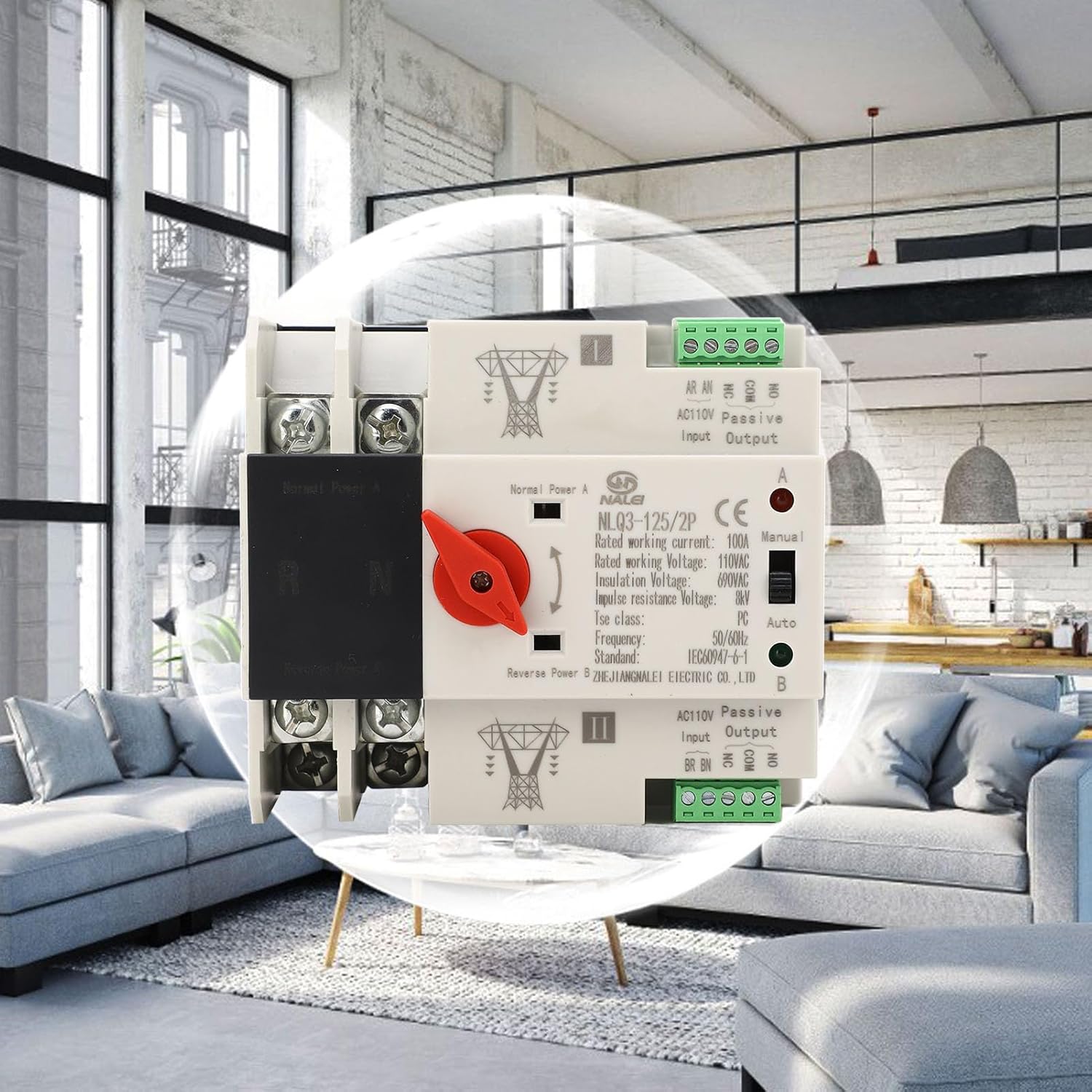

100Amp AC110V Automatic/Manual Transfer Switch, 2P 50/60Hz, 35mm Rail Mounting 2P ATS Generator Transfer Changeover Switch for Home Generator Changeover Fast Transfe for Rv, Lv Power

Spec: Item Type: Dual Power Automatic Transfer Switch Material: PC, silver Switch Type: Secondary power distribution Rated Current: 100A Rated Voltage: 110VAC Insulation Voltage: 690VAC Rated Frequency: 50Hz 60Hz Electrical Grade: PC grade isolation type Rated Impact Withstand Voltage: 8KV Touch Time: Operation Conversion Time: Return Time: Closing Time: How to Use: Check the integrity of the ATS before installation, turn the ATS on or off with the operating handle, check the flexibility of the drive and test the generation and disconnection conditions for each stage of load for normal and standby power. packing list: 1 x Dual Power Automatic Transfer Switch Note: 1. The maximum surrounding temperature shall not exceed 40℃, the minimum shall not be lower than ‑5℃, and the average temperature within 24 hours shall not be higher than 35℃ 2. The altitude of the installation site should not be higher than 2000m 3. When the maximum temperature reaches 40℃, the relative humidity of the installation site should not exceed 50%; when the temperature is the lowest temperature ‑5℃, the relative humidity is higher, for example, the temperature is 25℃, and the relative humidity is 90%. Due to temperature changes, special measures should be taken to deal with the occasional condensation on the surface of the product

• AUTOMATIC & MANUAL OPERATION: This dual power automatic transfer switch (2P ATS) can be operated either automatically or manually, providing flexibility for various applications where continuous power is critical. Specifically designed for PZ30 distribution boxes, emergency systems, and backup generator connections.
• INTELLIGENT POWER SWITCHING: When the normal power supply fails, the standby power engages immediately. Once normal power is restored, the switch automatically returns to the primary source. Features self-throwing and self-returning functionality with stable performance, ensuring uninterrupted power for homes, factories, laboratories, and farms.
• RELIABLE TRANSMISSION SYSTEM: Suitable for 50/60Hz AC systems with a rated voltage of 110V and current of 100A. The compact structure features a standard 35mm DIN rail mounting for easy installation. PC-grade isolation type with touch, operation conversion, and return times all under 50ms for rapid response.
• FLAME-RETARDANT & DURABLE CONSTRUCTION: Housing made of high-quality flame-retardant PC material providing excellent insulation and high-temperature resistance. Features silver contacts that resist aging and ensure anti-interference performance. Rated insulation voltage of 690VAC with 8kV rated impulse withstand voltage.
• TECHNICAL SPECIFICATIONS: Electrical grade PC isolation type with rated frequency of 50/60Hz. Designed for secondary power distribution applications. Reliable transmission mechanism ensures smooth operation. Compact design allows for space-saving installation in standard electrical panels.
