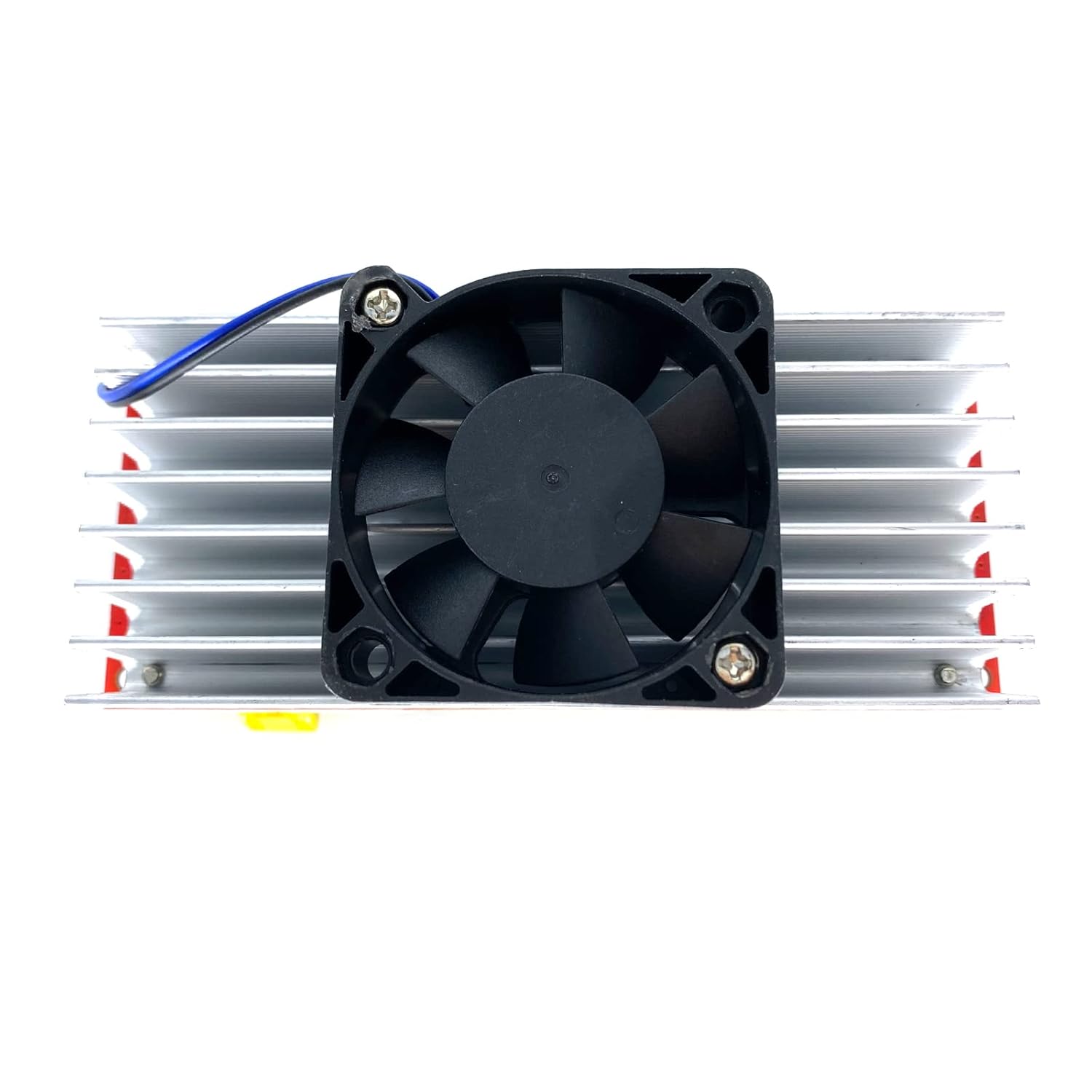

1800W 40A DC-DC 10-60V to 12-90V Step Up Boost Converter Current Power Supply Module +Fan

Product Information:Module name: 1800W 40A boost constant current moduleInput voltage: DC 10V~60VOutput voltage: 12~90V adjustableInput Current:10~30V input voltage, maximum current 30A31~60V input voltage, maximum current 25AOutput current: MAX 20A, if it exceeds 15A, please strengthen the heat dissipation (it will affect the input and output,Voltage difference, the greater the voltage difference between the input voltage and the output voltage, the smaller the current)Quiescent current: 15 mA (12V to 20V, the higher the output voltage, the current will increase too quiet)Constant current range: 0.8-20A (+/- 0.3A)Temperature: -40~ + 85° (If the ambient temperature is too high, please strengthen the heat dissipation)Operating frequency: 150 KHz1. Short circuit protection: 30A fuse, double short circuit protection, safer to use.2. Input reverse connection protection: 150A MOS meter protection, don't worry about input after burning out the power supply.3.Overcurrent protection: If the input exceeds 35A, there is a certain range of error, and the output voltage will be automatically reduced.Notes:1. The input power voltage must be above 10V, and the output polarity cannot be reversed or short-circuited. If the input voltage fluctuation range is lower than the set output voltage, the output voltage will be constant.2. When using the battery as the input source, the battery protection must be reduced, otherwise the battery and power supply will be damaged3. Do not use the short-circuit output current method. The short-circuit method cannot adjust the circuit structure of the booster module. When using the constant current mode to set the voltage, the constant voltage must be higher than the input voltage.Package Included:1*1800W 40A Step Up Current Power Supply Module

• Specifications: Input voltage: DC 10V~60V,Output voltage: 12~90V adjustable,Input Current:10~30V input voltage, maximum current 30A,31~60V input voltage, maximum current 25A,Quiescent current: 15 mA ,Constant current range: 0.8-20A (+/- 0.3A).Output current: MAX 20A, if it exceeds 15A, please strengthen the heat dissipation.
• [Protection Function]: 30A fuse, double short circuit protection, safer to use. 150A MOS meter input reverse connection protection, don't worry about input after burning out the power supply. Overcurrent protection, if the input exceeds 35A, there is a certain error range, and the output voltage will automatically decrease.
• Do not use the short-circuit output current method. The short-circuit method cannot adjust the circuit structure of the boost module. When using the battery as the input source, the battery protection must be reduced, otherwise the battery and power supply will be damaged. The input power supply voltage must be above 10V, and the output polarity cannot be reversed or short-circuited.
• [Widely Used]:Suitable for voltage regulation of solar panels, lithium batteries, rechargeable batteries, driving high-power LED lights, etc.
