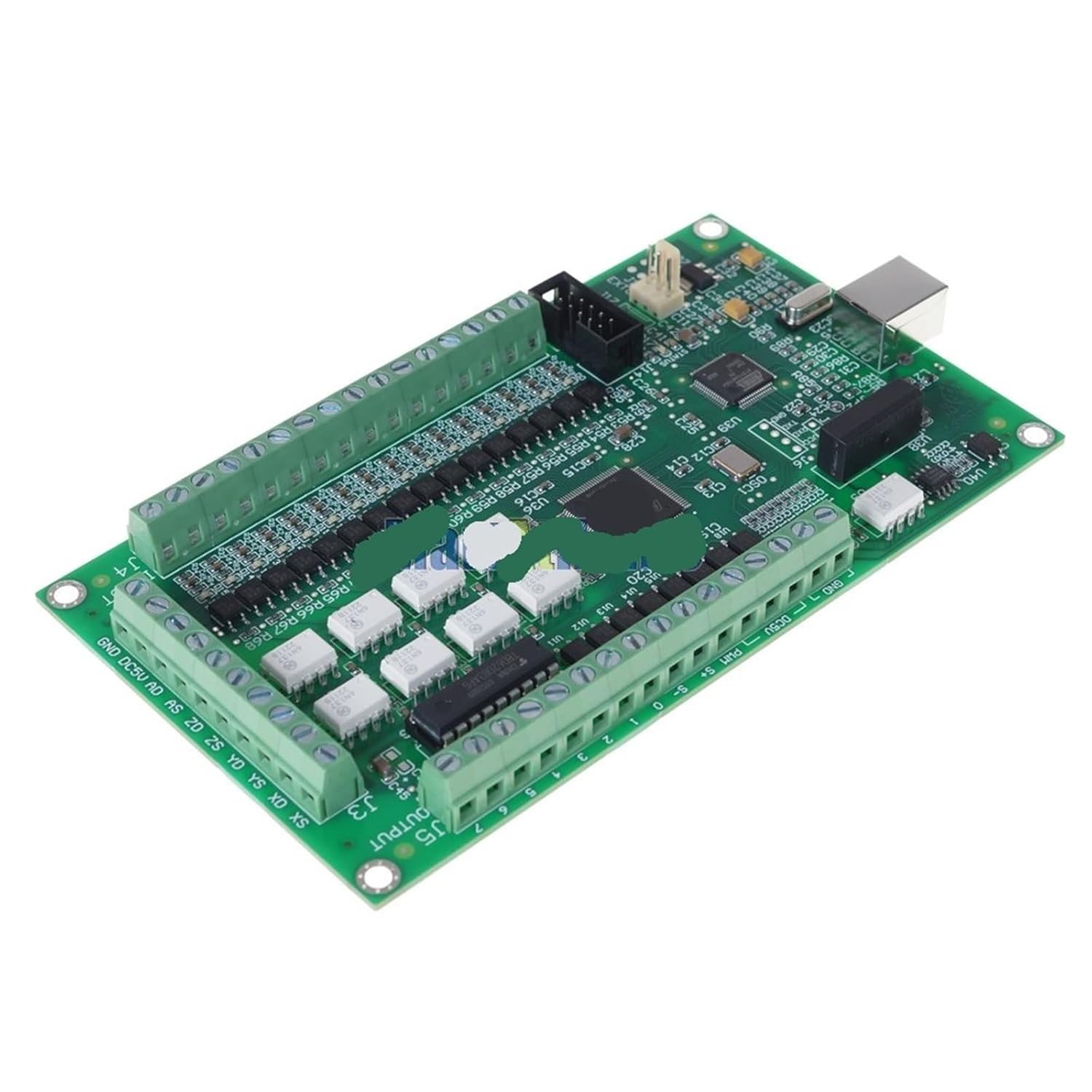

3/4 Axis CNC Mac3 USB Breakout Board Motion Control Card AKZ250-USB2(B) 200KHz High-Speed Optocouplers Support MPG

Package list:1 x CNC Mac3 USB Breakout Board1 x 1.5 Meter USB Cable2 x Magnetic Ring1 x External Magnification Knob with Cable and Plugs1 x Knob CapEnglish Manual, Plugin, Schematic (We will offer a download link to you after you purchase)(1) Appearance: The version uses SMD LED, including 16 input point indications and 1 speed measurement input point indication.(2) Function: The 16 input points of the version have added capacitive filtering.Output and Input Interfaces:Support all the Mac3 version, including the latest edition: Mac3 R3.042.040 Support all the Window version, Including the latest edition: Windows7.Fully support USB hot swapping, to monitor USB attachment state any time. While Mac3 are working, if you uproot USB cable, then plugs it also can make it work at once.Get 200KHz output, Link to Stepping/Service.Have status indicator. Can indicate Mac3 attachment, and USB connectivity, when it is on, all kinds of state are clear for you at a glance.Have 16 input indicators, It Clearly indicates the status of signal-input.Have Speed-measurement function, The Spindle actual speed is displayed on the Mac3 interface in real time. And innovatively provide real-time speed graph, Making the speed variations clear and lively.Have on-board isolation power supply, NO external power supply Simplify the requirements of electric power supply. It's convenient to connect external power supply can also be used, so you can have any choice you like.There are 10 super-speed 10 MHz light-couplers, 24 General light-couplers, so the total amounts of light-couplers are up to 34. Isolate all the input/output. The High costs design provides a complete anti-jamming function and perfect security protection.The Product Information:200KHz,3 axis / 4 axis output, frequenc 200KHz. Use 10MHz high-speed optical coupling to isolate electric power.Support 16 input points. 16 input-isolation light-coupler. Every light-coupler got LED indicatorSpeed: 48M. input real-time signals so you don't need to use PC, The Signal is independently processed by the Movement Control CARDS, ensuring that you get really real-time information and reliability.Eight output dots. Users can set functions that you need by yourselves, for example: The driver's enable signal, Spindle open/close, and Cooling fluid control and the like.Control card uses USB to supply power. The Board carries isolating power DC-DC. It's convenient for you to use for you don't need to connect the power additionallyU spindle speed measurement signal input. Speed: 60 thousand turns/minute. The speed will be displayed on the Mac3 at the same time, with the real-time display of spindle speed by waveform. It can display the spindle speed in Mac3 Dimmension:Application : Lathe and Turning CenterOrigin : Mainland ChinaCertification : Noneitem name : Mac3 Motion Control Card
