ChillWaves 304 Stainless Steel Air Hose Fittings, 90 Degree Elbow Hose Barb Fittings 3/4" Barb x 3/4" NPT Male Thread Adapter with Hose Clamps(3-PACK)

Barbed Fittings are the components in the pipeline system that play the roles of connection, control, reversal, diversion, sealing, and support.These 304 Stainless Steel hose barb fittings are US NPT standard threads with a 60 degree taper.Product introduction：1. The barbed end is used to connect hoses of the same inner diameter, and the Hose Clamp creates a tight seal between the barbed end and the hose. NPT female and male threads are hard connections, which typically require sealing.2. It is suitable for gases, water, oil and non-corrosive liquids. Can be used with PVC, PU, rubber hose or tubing. Widely used in grease, fuel, refrigeration, water, instrumentation, oil and gas and hydraulic systems. 3. 90° angle to change direction of flow between pipes. 4. The threads are smooth and clear, easy to install, and a sufficient number of threads are designed to ensure that the joint is stronger after tightening and prevent loosening. To ensure a seal, Teflon tape can be used, just wrap a few turns around the threads. 5. When purchasing Barbed Fittings, consider the application as this will affect the material type, shape, size and desired durability. Fittings are threaded or unthreaded and come in many shapes, styles, sizes and schedules (wall thickness)PACKAGE INCLUDED:3 x 3/4" Barb x 3/4" MNPT 90 Degree Elbow Hose Barb Fittings3 x Hose Clamp1 x Teflon tape

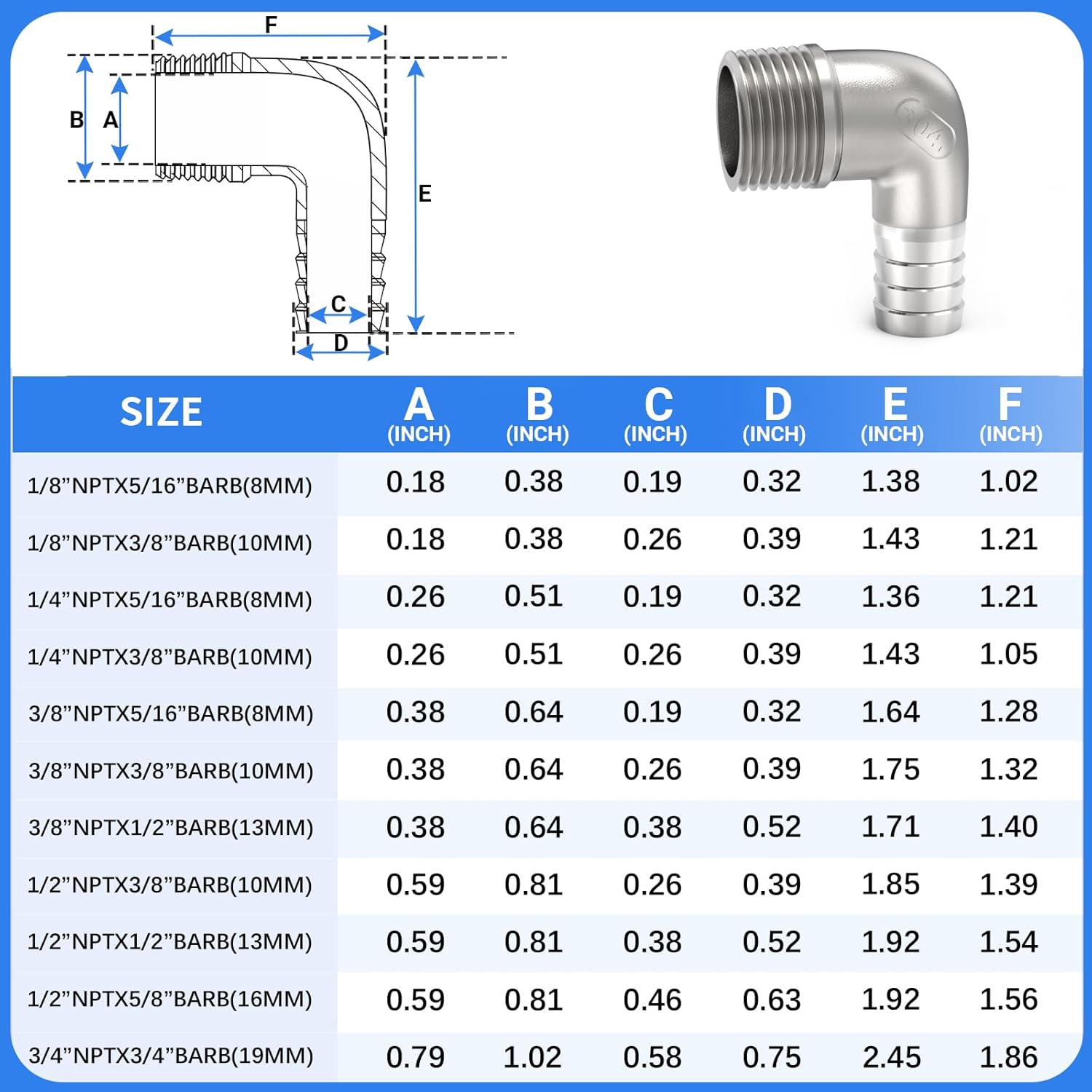

• SIZE - 3/4" Barb x 3/4" NPT Male 90 Degree Elbow Hose Barb Fitting. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.

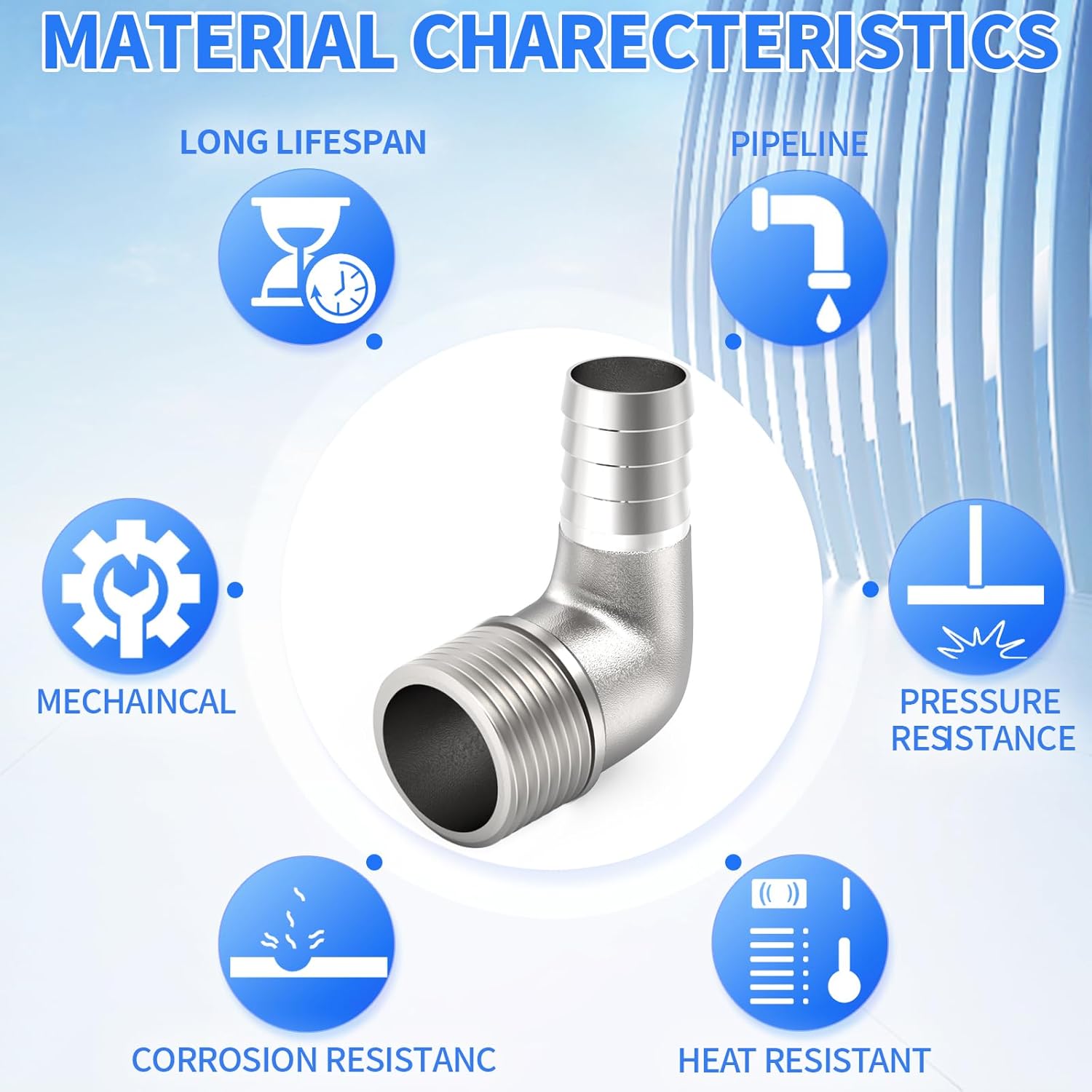

• MATERIAL - Made of high quality 304 stainless steel, it has excellent oxidation and corrosion resistance, high compressive strength, abrasion resistance, durability, good low temperature toughness, heat resistance and mechanical properties.
• USE - The barbed end is used to connect flexible hose or tubing, the NPT end is used to connect to threaded pipe fittings, 90° angle to change direction of flow between pipes, and can be used with PVC, PU, ​​rubber hose or tubing.It is a fitting specially used in pipeline connection engineering.It is suitable for use with gases, water, oil, and non-corrosive liquids.
• WORKING PRESSURE & TEMPERATURE - 225PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)
• NOTE - NPT is a tapered pipe thread with a 60°taper and generally cannot be screwed to the end.
