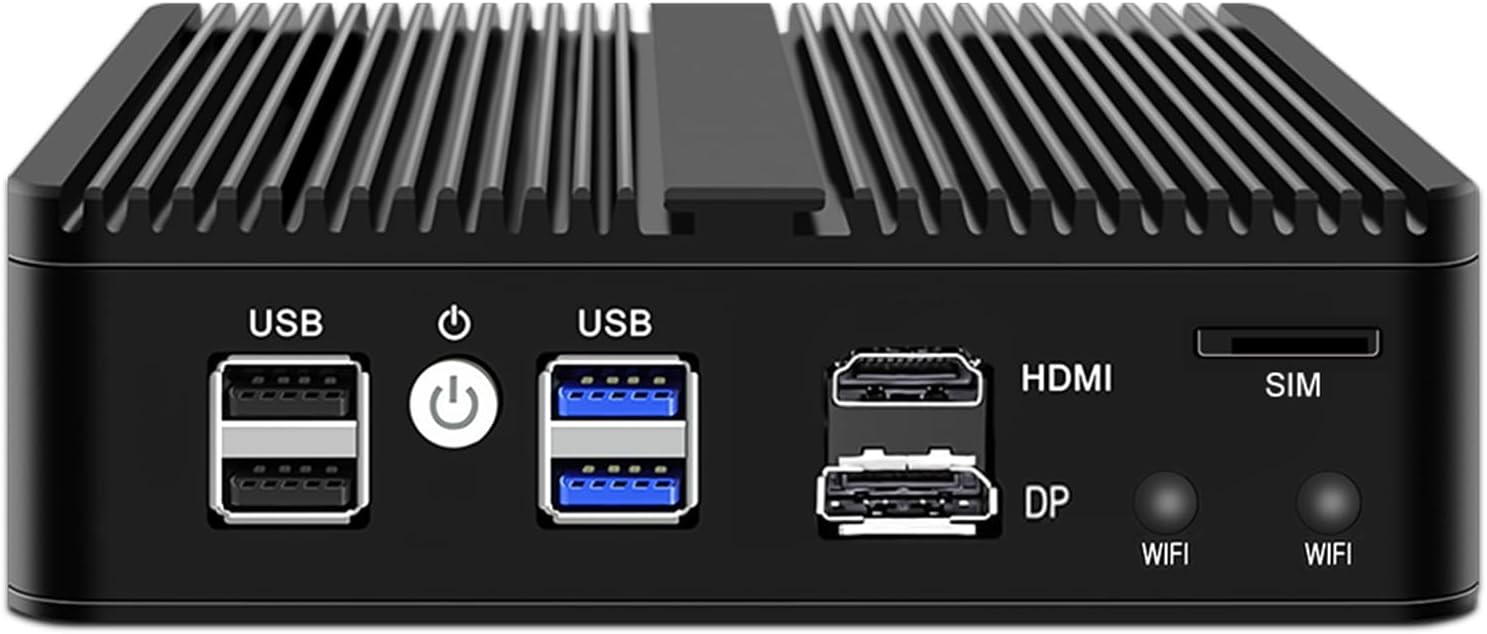

J4125 Micro Firewall Appliance, 4X InteI i226 LAN, Fanless Mini PC Router, 8GB DDR4 128GB SSD, RJ45 Console, 3G/4G SIM Slot, AES-NI
Product details
| Management number | 209110382 | Release Date | 2026/03/29 | List Price | US$36.00 | Model Number | 209110382 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
CPU: InteI Celeron J4125, 4 Cores 4 Threads, up to 2.70 GHz, 4MB Cache, TDP 10WGPU: InteI UHD Graphics 600InteI AES New Instruction Support: YesMemory: 2 x SO-DIMM DDR4 RAM slots, support 2400/2666 MHzStorage: 1 x M.2 2280 NVMe/PCIe3.0*2 SSD slot, 1 x 2.5 inch SATA3.0 SSD/HDD slotNetwork: 4 x InteI I226-V 2.5GbE RJ45 LANWireless: 1 x mPCIE slot, support Wi-Fi/3G/4G moduleUSB: 2 x USB3.0, 2 x USB2.0Display: 1 x HDMI, 1 x DPOther I/O: 1 x RJ45 console, 1 x SIM slotPower: DC 12~19VOperational Enviroment: -15°c~70°c, Relative humidity 5%~85%Cooling System: No FanDimension: 136 x 126 x 40 mmChassis Material: Aluminium alloyCompatibility:- Boot mode: only support UEFI- Some open source programs have not updated driver for Intel I226-V and will prompt "Network are not founded".- Untangle is not supported
- Excellent Power Consumption Performance: Equipped with InteI Celeron J4125 Processor, 4 Cores and turbo frequency up to 2.70 GHz, the TDP of J4125 is only 10W, support InteI AES-N
- Rich Interface: 4x InteI i226-V 2.5GbE RJ45 LANs, 2x USB3.0, 2x USB2.0, 1x RJ45 Console, 1x SIM slot, 1x mPCIE wireless slot(support 3G/4G/Wi-Fi module), 1x HMDI, 1x DP
- RAM & Storage: 2x SO-DIMM DDR4 RAM slots, support 2400/2666MHz. 1x M.2 2280 NVMe/PCIe3.0*2 SSD slot, 1x 2.5 inch SATA3.0 SSD/HDD slot
- Compatibility: Compitable with mainstream open source programs: Win OS, Linux, pf-Sense, OPNsense, VMware, Proxmox, OpenWRT. Not support Untangle
- 24/7 Working: Solid metal shell offers better cooling and dustproof performance. Fanless design, silently work 24/7. Perfect for using as a family/office/personal firewall appliance, virtualization host, VPN router, NAS and server
| Brand | Tuofudun |
|---|---|
| Color | J4125 |
| RAM Type | DDR4 SDRAM |
| Model Name | X2B |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Display Type | LED |
| Manufacturer | Tuofudun |
| Memory Speed | 2666 MHz |
| Video Output | HDMI, DisplayPort |
| BuiltIn Media | 1x Mini PC, 1x Power Adapter |
| Processor Brand | Intel |
| Processor Count | 4 |
| Processor Speed | 2.7 GHz |
| Total Usb Ports | 4 |
| Video Processor | Intel |
| CPU Model Number | J4125 |
| Operating System | Linux |
| Processor Series | Celeron |
| Graphics Ram Type | DDR4 SDRAM |
| Native Resolution | 3840 x 2160 |
| Hardware Interface | HDMI |
| Memory Clock Speed | 2666 MHz |
| Additional Features | Wps |
| Wireless Technology | Wi-Fi |
| Graphics Coprocessor | Intel UHD Graphics 600 |
| Graphics Description | Integrated |
| RAM Memory Installed | 8 GB |
| Hard Disk Description | HDD, SSD |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 2 |
| Video Output Interface | HDMI, DisplayPort |
| Connectivity Technology | HDMI, LAN, USB, Wi-Fi |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 8 GB |
| Ram Memory Maximum Size | 8 GB |
| Specific Uses For Product | Personal |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 1 |
| Wireless Network Technology | Wi-Fi |
| Personal Computer Design Type | Mini PC |
